Digital Torque Wrench-Product photo

SH-CBTA Series

SPECIFICATION

  • ◈ Accuracy ≫ CW:±1.5% CCW:±2.5%
  • ◈ Angle Accuracy ≫ ±2°
  • ◈ Min. Scale Unit ≫ SH-CBTA30-1, SH-CBTA30-2, SH-CBTA60-2(0.01Nm), other(0.1Nm)
  • ◈ Min. Angle ≫ 0.1° | Max. Angle≫ 360° | Setting Range ≫ 0.1°~360°
  • ◈ Units ≫ Nm, Kg.cm, lb-in, lb-ft
  • ◈ Operating Temperature ≫ -10°C~ 60°C
  • ◈ Storage Temperature ≫ -20°C~ 70°C
  • ◈ Humidity ≫ Up to 90%  non-condensing
  • ◈ Battery life(Fully charged used time) ≫ 8-10 hrs
  • ◈ Battery life(Recharge time) ≫ 90-120 mins
  • ◈ Drop Test ≫ 1m
  • ◈ Shaking Test ≫ 10G
  • ◈ Service life test ≫ 10000 cycles
  • ◈ Environmental test ≫ PASS
  • ◈ EMC test ≫ PASS
  • ◈ FCC ID: 2BCGY-SH05BT
Model No. T Driver Max.Torque Setting Range Max.Torque Load/ DIN Standards
SH-CBTA30-1 72 1/4" 30 Nm 1.5~30 Nm 88.0/62.0 Nm
SH-CBTA30-2 72 3/8" 30 Nm 1.5~30 Nm 294.0/202.0 Nm
SH-CBTA60-2 72 3/8" 60 Nm 3.0~60 Nm 294.0/202.0 Nm
SH-CBTA135-2 72 3/8" 135 Nm 6.8~135 Nm 294.0/202.0 Nm
SH-CBTA135-3 72 1/2" 135 Nm 6.8~135 Nm 735.0/512.0 Nm
SH-CBTA200-3 72 1/2" 200 Nm 10~200 Nm 735.0/512.0 Nm
SH-CBTA340-3 72 1/2" 340 Nm 17~340 Nm 735.0/512.0 Nm
SH-CBTA400-3 72 1/2" 400 Nm 20~400 Nm 735.0/512.0 Nm
SH-CBTA600-4 24 3/4" 600 Nm 60~600 Nm 1836/1412 Nm
SH-CBTA600-5 24 1" 600 Nm 60~600 Nm 3270/2515 Nm
SH-CBTA800-4 24 3/4" 800 Nm 80~800 Nm 1836/1412 Nm
SH-CBTA800-5 24 1" 800 Nm 80~800 Nm 3270/2515 Nm
SH-CBTA1000-4 24 3/4" 1000 Nm 100~1000 Nm 1836/1412 Nm
SH-CBTA1000-5 24 1" 1000 Nm 100~1000 Nm 3270/2515 Nm

Product Features

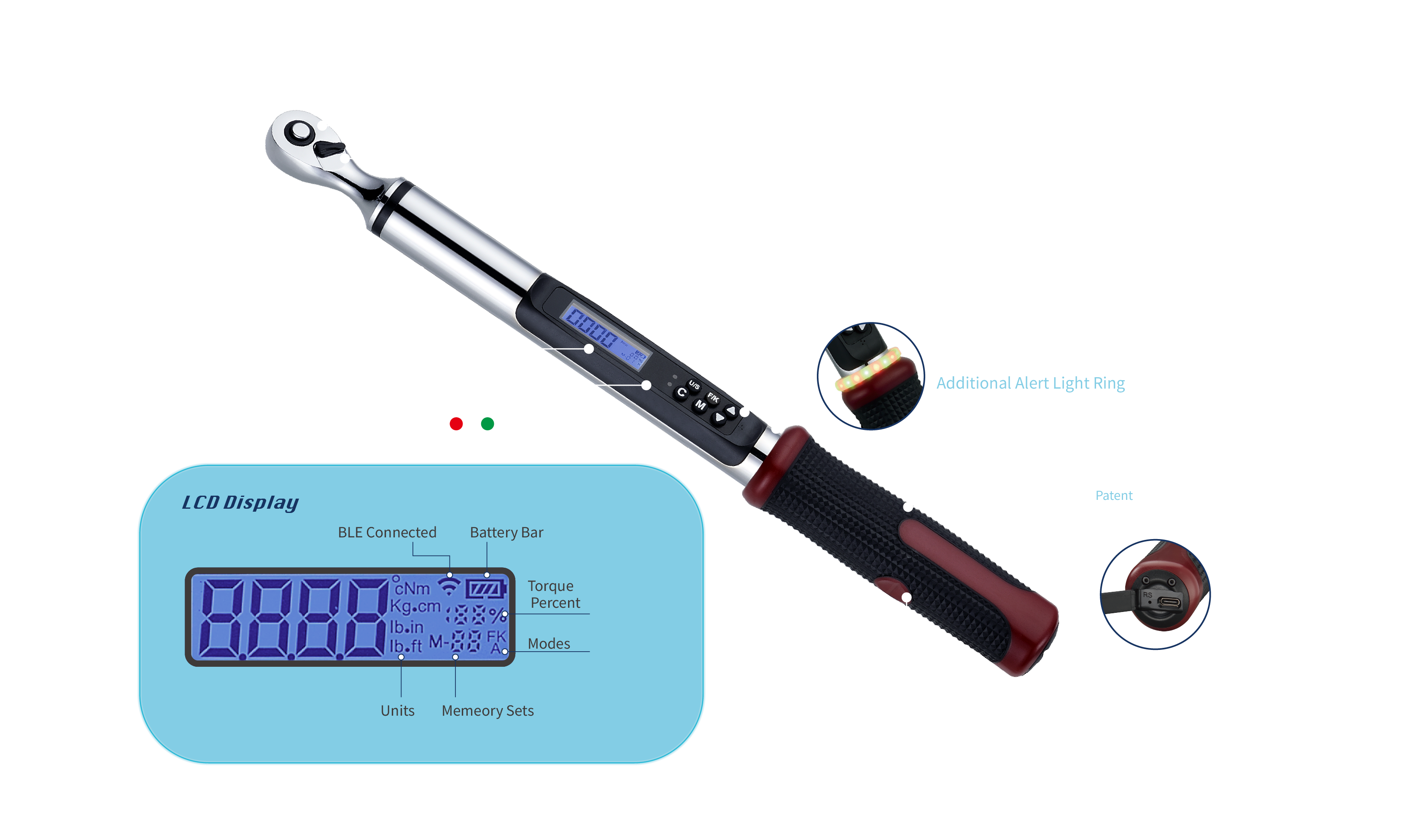

Bluetooth Digital Torque Wrench-Features

Mini Bluetooth Digital Torque Wrench-Function Description


Mini Bluetooth Digital Torque Wrench-Function

  • ◈Smart Bluetooth Connection
    Real-time torque monitoring with App & PC software, easy data storage and management.
  • ◈Comprehensive Data Records
    Stores up to 1000 history logs, exportable to Excel / PDF for quality control.
  • ◈Multi-level Alerts
    Buzzer & LED at 80%, vibration warning at 90% torque for safer operation.
  • ◈Multiple Operating Modes
    Peak / Track / Angle, plus customizable options for flexible use.
  • ◈Accurate Digital Display
    Built-in pressure sensor with backlit LCD ensures clear and precise readings.
  • ◈Multi-unit Support
    Four selectable torque units (Nm / Kg.cm / lb.in / lb.ft) for worldwide applications.
  • ◈User-friendly Design
    30 presets, auto power-off in 2 minutes (customizable power-off settings), and key lock function for convenient use.
  • ◈Complete Accessories
    Includes toolbox, ISO calibration certificate, and Type-C charger for professional reliability.

Digital Torque Wrench-Packaging

Model No. Wrench Length
(size)		 Wrench Weight
(size)		 Box Size
LxWxH(mm)		 Quantity
(pcs)		 N.W.
(kg)		 G.W.
(kg)		 Quantity
LxWxH(cm)		 Cu.ft
SH-CBTA30-1 382mm 770g±50g 460×103×51 8 15.20 16.20 48.8×24.2×25.5 1.06
SH-CBTA30-2 382mm 795g±50g 460×103×51 8 15.20 16.20 48.8×24.2×25.5 1.06
SH-CBTA60-2 382mm 795g±50g 460×103×51 8 15.38 16.38 48.8×24.2×25.5 1.06
SH-CBTA135-2 408mm 898g±50g 578×103×51 6 13.50 14.50 60.6×24.2×19.7 1.02
SH-CBTA135-3 426mm 1114g±50g 578×103×51 6 14.78 15.78 60.6x24.2x19.7 1.02
SH-CBTA200-3 536mm 1272g±50g 697×103×51 4 12.04 13.04 72.7x24.2x13.6 0.84
SH-CBTA340-3 638mm 1470g±50g 697×103×51 4 12.66 13.66 72.7x24.2x13.6 0.84
SH-CBTA400-3 638mm 1470g±50g 697×103×51 4 12.66 13.66 72.7x24.2x13.6 0.84
SH-CBTA600-4 923mm 3902g±50g 1000×118×85 1 7.56 8.00 103×14.5×10 0.53
SH-CBTA600-5 923mm 3902g±50g 1000×118×85 1 7.56 8.00 103×14.5×10 0.53
SH-CBTA800-4 1225mm 4695g±50g 1265x118x85 1 9.52 10.06 126.5x14.5x10 0.57
SH-CBTA800-5 1225mm 5040g±50g 1265x118x85 1 9.91 10.45 126.5x14.5x10 0.57
SH-CBTA1000-4 1225mm 4695g±50g 1265x118x85 1 9.52 10.06 126.5x14.5x10 0.57
SH-CBTA1000-5 1225mm 5040g±50g 1265x118x85 1 9.91 10.45 126.5x14.5x10 0.57
UNIT mN.m cN.m N.m ozf.in lbf.in lbf.ft gf.cm kgf.cm kgf.m
1 mN.m 1 0.1 0.001 0.142 0.009 0.0007 10.2 0.01 0.0001
1 cN.m 10 1 0.01 1.416 0.088 0.007 102 0.102 0.001
1 N.m 1000 100 1 141.6 8.851 0.738 10197 10.2 0.102
1 ozf.in 7.062 0.706 0.007 1 0.0625 0.005 72 0.072 0.0007
1 lbf.in 113 11.3 0.113 16 1 0.083 1152.1 1.152 0.0115
1 lbf.ft 1365 135.6 1.356 192 12 1 13826 13.83 0.138
1 gf.cm 0.098 0.01 0.0001 0.014 0.0009 0.00007 1 0.001 0.00001
1 kgf.cm 98.07 9.807 0.098 13.89 0.868 0.072 1000 1 0.01
1 kgf.m 9807 980.7 9.807 1389 86.8 7.233 10000 100 1
