Digital Torque Wrench-Product photo

SH-ECTA Series

SPECIFICATION

  • ◈ Accuracy ≫ CW:±2% CCW:±3%
  • ◈ Min. Scale Unit ≫ SH-ECTA30-1, SH-ECTA60-2(0.01Nm), other(0.1Nm)
  • ◈ Units ≫ Nm, Kg.cm, lb-in, lb-ft
  • ◈ Operating Temperature ≫ -10°C~ 60°C
  • ◈ Storage Temperature ≫ -20°C~ 70°C
  • ◈ Humidity ≫ Up to 90%  non-condensing
  • ◈ Battery life(Fully charged used time) ≫ 8-10 hrs
  • ◈ Battery life(Recharge time) ≫ 90-120 mins
  • ◈ Drop Test ≫ 1m
  • ◈ Shaking Test ≫ 10G
  • ◈ Service life test ≫ 10000 cycles
  • ◈ Environmental test ≫ PASS
  • ◈ EMC test ≫ PASS
Model No. T Driver Max.Torque Setting Range Max.Torque Load/ DIN Standards
SH-ECTA30-1 72 1/4" 30 Nm 1.5~30 Nm 88.0/62.0 Nm
SH-ECTA60-2 72 3/8" 60 Nm 3.0~60 Nm 294.0/202.0 Nm
SH-ECTA135-2 72 3/8" 135 Nm 6.8~135 Nm 294.0/202.0 Nm
SH-ECTA135-3 72 1/2" 135 Nm 6.8~135 Nm 735.0/512.0 Nm
SH-ECTA200-3 72 1/2" 200 Nm 10~200 Nm 735.0/512.0 Nm

Product Features

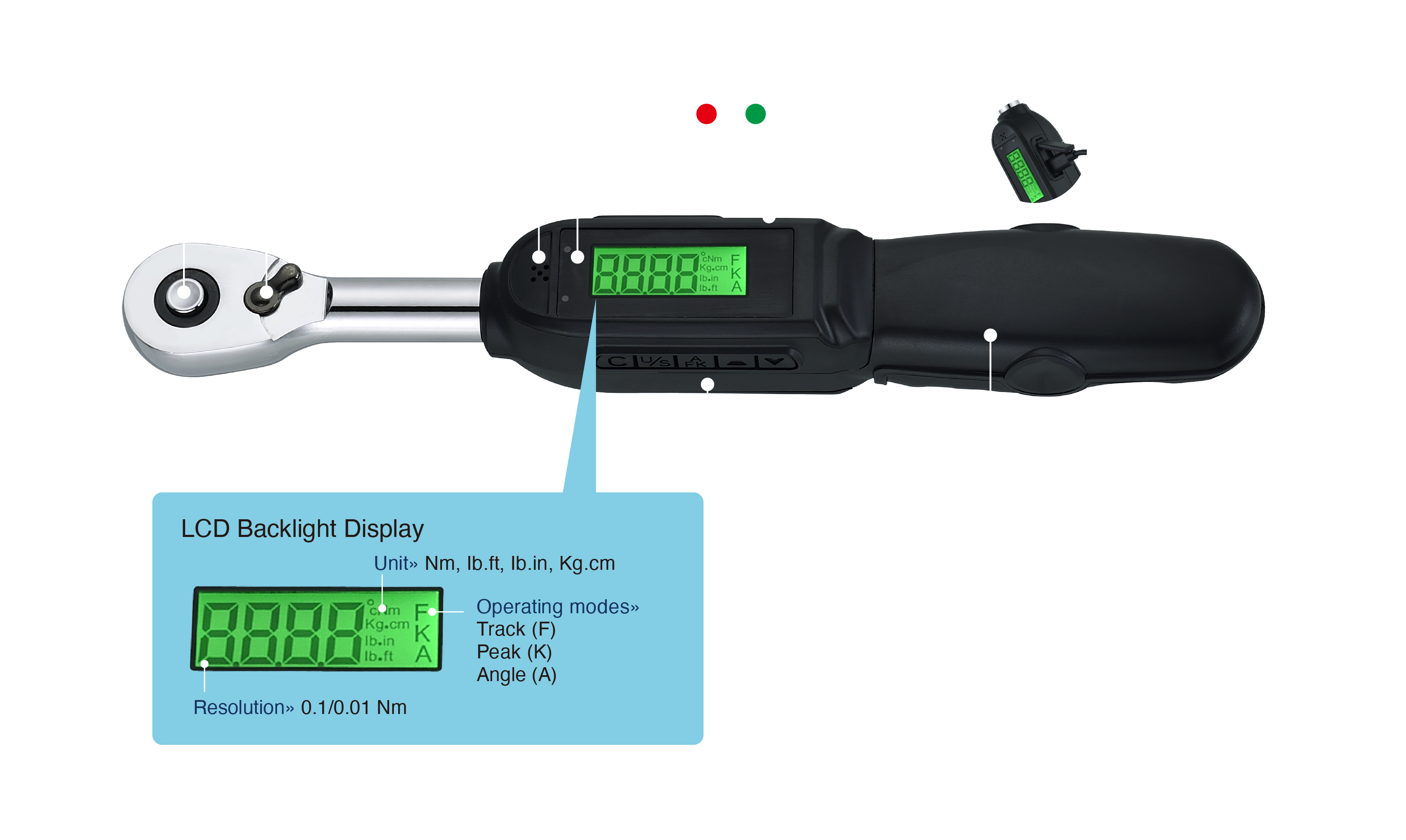

Digital Torque Wrench-Product Features

Digital Torque Wrench-Packaging

Model No. Wrench Length
(size)		 Wrench Weight
(size)		 Box Size
LxWxH(mm)		 Quantity
(pcs)		 N.W.
(kg)		 G.W.
(kg)		 Quantity
LxWxH(cm)		 Cu.ft
SH-ECTA30-1 220mm 294g±50g 390×90×70 6 4.17 4.68 41×30×17 0.74
SH-ECTA60-2 258mm 436g±50g 390×90×70 6 5.04 5.54 41×30×17 0.74
SH-ECTA135-2 258mm 436g±50g 390×90×70 6 5.04 5.54 41×30×17 0.74
SH-ECTA135-3 383mm 694g±50g 490×95×70 6 7.20 7.77 50×30×30 1.59
SH-ECTA200-3 383mm 694g±50g 490×95×70 6 7.20 7.77 50×30×30 1.59
UNIT mN.m cN.m N.m ozf.in lbf.in lbf.ft gf.cm kgf.cm kgf.m
1 mN.m 1 0.1 0.001 0.142 0.009 0.0007 10.2 0.01 0.0001
1 cN.m 10 1 0.01 1.416 0.088 0.007 102 0.102 0.001
1 N.m 1000 100 1 141.6 8.851 0.738 10197 10.2 0.102
1 ozf.in 7.062 0.706 0.007 1 0.0625 0.005 72 0.072 0.0007
1 lbf.in 113 11.3 0.113 16 1 0.083 1152.1 1.152 0.0115
1 lbf.ft 1365 135.6 1.356 192 12 1 13826 13.83 0.138
1 gf.cm 0.098 0.01 0.0001 0.014 0.0009 0.00007 1 0.001 0.00001
1 kgf.cm 98.07 9.807 0.098 13.89 0.868 0.072 1000 1 0.01
1 kgf.m 9807 980.7 9.807 1389 86.8 7.233 10000 100 1
